10000 Gallon Asphalt Heating Tank With Unloading Pump

Ask Lasest Price
Brand Name :	WUHANCS
Model Number :	RLK-40
Certification :	ISO
Price :	Negotiatable
Payment Terms :	T/T, L/C
Supply Ability :	10 Units/Mon
Delivery Time :	40 working days

Add to Cart

Product Details
Company Profile

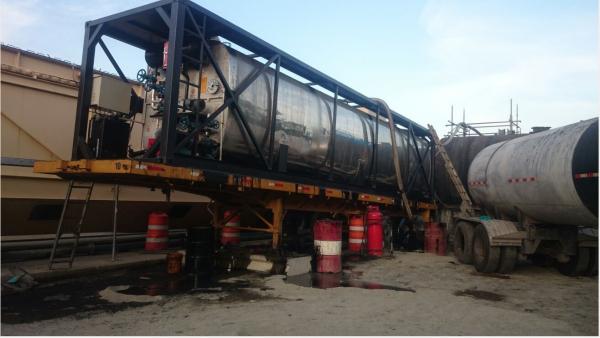

10000 Gallon Asphalt Heating Tank With Unloading Pump

WUHANCS Asphalt Storage Tank model RLK-40, with the following main features :

-10,000 Gallon capacity

-Direct fire heated (2 Italian Riello Diesel Burners 800,000 BTU each )

-Positive displacement type AC Unloading Pump

-Scavenger Coils to use with Hot Oil circulation System (INCLUDED with the tank)

-Coils can also be used to run hot Oil from a boiler to heat the asphalt if needed.

-Two agitators for PMAC capability!!

-Control Panel including temperature and timer controls.

-Container type structure portable ready with the use of any conventional 40’ container chassis. Designed to be hauled EMPTY

Size	40ft(12192mmx2438mmx2591mm)
Material	Carbon steel
Thickness	5mm
Superior Structural Strength	4sets
Insulation	Fiberglass
Cladding	Mirror aluminium sheet
Temperature Rang	-19 ~ +200 degree Celsius
Ladder	1 set
Top walkway	1 set
Asphalt Loading Port	1, on the top
Asphalt Return Port	1, on the top
Asphalt Unloading Pump	With SIMENS motor, 25t/h
Diesel Burner	2 Riello Burners, 800,000 BTU each
Fuel Tank	180 liter
Control Panel	Automatically control the ON/OFF operation of the burners
Fire Extinguisher	1

FAQ

Q: What's the advantage of this tank?

A: High performance and long life.

Q: How about the transport?

A: The design of this tank is in accordance with standard container size. So it is can match any kind of trailer, suitable for sea and road when empty.

Q: Can design this kind of tank with 20ft size?

A: Yes, of course.

Q: Can I be your agent of this tank?

A: No problem. We will give agency price and delivery priority.
