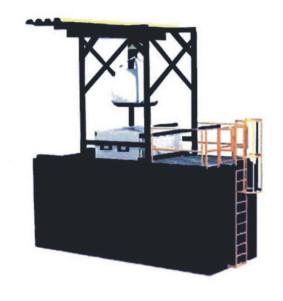

19t Capacity Asphalt Melting Equipment To Melt Flexible Packed Bitumen

Product Categories

Wuhan Changshi Highway Machinery Co.,Ltd.

Contact Now

Add to Cart

Bitumen Melting Equipment With Direct Burner Heating System

Item	Description	Specification	Remarks
1	Shape	Rectangle	20ft
2	Effective capacity(m3)	19
3	Outline dimension(mm)	605824382591
4	Total weight of tank(T)	7.5
5	Insulation layer(mm)	50
6	The temperature down rate of the asphalt transport tank(℃/24h)	≤12
7	Thickness off the Ends(mm)	8
8	Direct visual temperature meter	1
9	Temperature sensor	1
10	overflowing hole	one,800750200 mm
11	Breather valve	1
12	Pressure(KPa)	＜1
13	Asphalt valves	1	DN80, one for asphalt discharge
14	Fast coupling	1	4″
15	Design Temperature	-19℃~200℃
16	Skidproof step board	1 group	W=400mm-475mm
17	Ladder	1	W=400mm
18	Packed asphalt loading point	1	1500mmx1200mm
19	Heating system	Direct heating	2 Groups
20	Tackling system	One	With support and lifting chain
21	Diesel oil burner	Two, 20x10⁴ Kcal	233KW
22	Electrical control box	one
23	Asphalt melting capacity	4t/hour
24	Asphalt pump	1	25t/hour, Jacketed
25	Asphalt Filter	1	DN80,Jacketed
26	Packed asphalt bag lifting device	1	6m
27	Frame of the lifting device	1 set	6500mmx3000mm
