Name: Industrial Bitumen Storage Tank High Strength Liquid Asphalt Storage Tanks
Brand: changshi
Price: 1 USD

Add to Cart

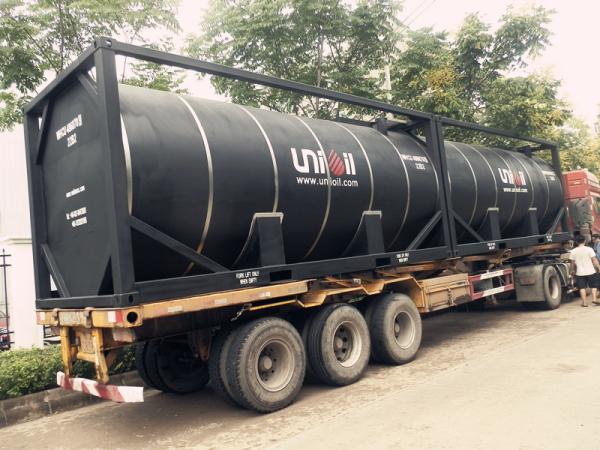

Industrial Bitumen Storage Tank High Strength Liquid Asphalt Storage Tanks

Features and technical data:

Specifications
Frame Dimensions (L x W x H)		6058 x 2438 x 2591 mm
Nominal Capacity		23000 litre (±0.75%)
Maximum Gross Mass		36000 kgs
Tare Mass		3550 kgs(±3%)
Design Temperature (Frame & Tank)		-40 to +130 ℃
Working	4.0 bar
Material	Tank (Shell & Ends)	SANS 50028-7 Type 1.4402/1.4404 (C<0.03%)
	Frame	SPA-H or equivalent
Insulation	Shell	Rockwool (50kg/m3) on aluminium foil fitted against shell, the Max. thickness 50mm where possible.
	Ends	Glasswool (16kg/m3) suit thickness on aluminium foil.
Steam Heating	A condensate drain is fitted.
Manhole	500mm low profile with TIR provision, 8 point fixing with Super Tanktyt Lid seal.
Safety Relief	2½” BSP The assembly is off centre on a tangential tank pad.
Air Inlet	DN 40 ball valve terminating with 1½” BSP connection and cap. The assembly is off centre on a tangential tank pad.
Top Discharge	DN80
Bottom Discharge	DN80 45° hi-lift Footvalve and 3” clamped butterfly vale terminating with a 3” BSP spigot with cap and chain.
